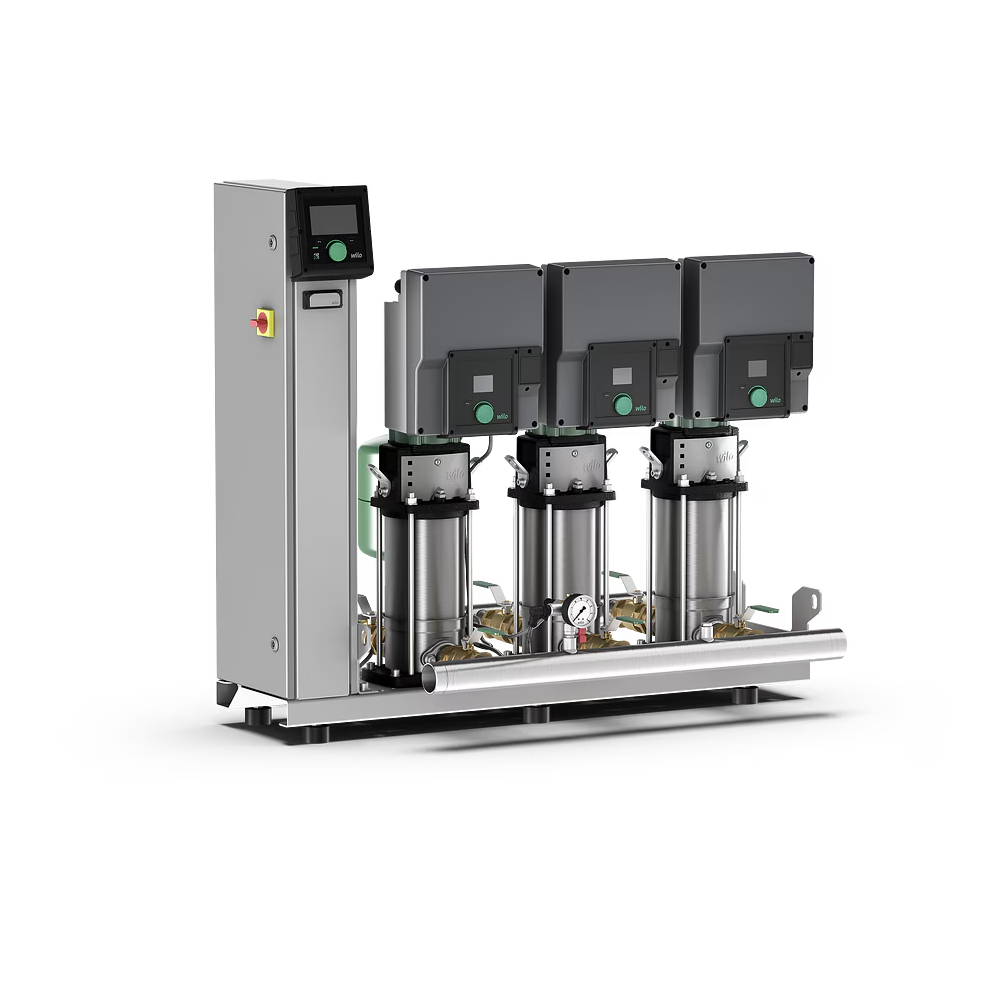

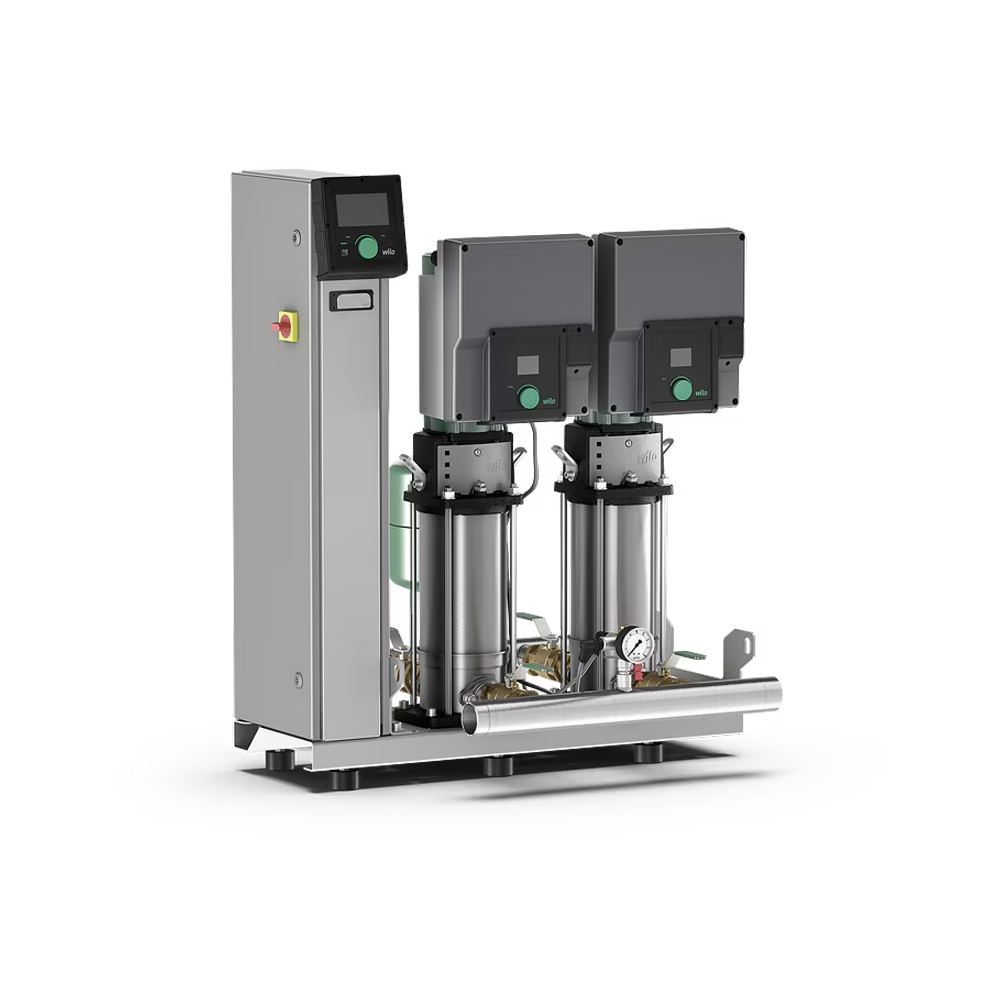

Wilo SiBoost2.0 Smart Helix VE
Wilo-SiBoost2-0-Smart-2Helix-VE
Wilo-SiBoost2-0-Smart-3Helix-VE

Wilo SiBoost2.0 Smart Helix VE

The Wilo SiBoost2.0 Smart Helix VE is a fully automatic pressure‑boosting system equipped with 2 to 4 vertical multistage Helix2.0 VE stainless‑steel centrifugal pumps, each with integrated frequency converters. It’s designed for drinking water supply in residential, commercial, and industrial buildings, offering high efficiency, redundancy, and seamless integration with building automation systems.

Category:

Description

Optimal pressure boosting. Intuitive operation.

The Wilo-SiBoost2.0 Smart Helix VE provides reliable water supply in large buildings at all times with integrated protection functions. These include overload protection, dry-running protection and low-water cut-out switchgear with automatic deactivation. The optional interface to the SCADA connection also enables monitoring and leakage detection.​

Furthermore, significant energy savings are achieved through pressure-loss optimised hydraulics as well as optimal load adjustment. ​

The switchgear with colour display provides optimal operating convenience by displaying visualisations and plain text.​

  • Multi‑pump configuration: 2–4 Helix2.0 VE pumps in parallel for redundancy and load balancing.
  • High‑efficiency IE5 motors: Integrated air‑cooled frequency converters optimize energy use.
  • Smart Controller SCe: Plain‑text display, rotary knob, and intuitive menus for commissioning.
  • Protection functions: Overload, dry‑running, and low‑water cut‑out with automatic deactivation.
  • Building automation integration: Optional CIF modules and Wilo‑Gateway for BACnet/Modbus.
  • Drinking water suitability: All wetted components are stainless steel.
  • Fully automatic water supply in inlet mode, in the field of public water supply, for pressure boosting from tanks or pressure pipes, for municipal, commercial, industrial and domestic applications (e.g. water supply companies, trade and industrial companies, residential, office or public facilities, administration buildings, hotels, hospitals).
  • Standby pump included according to DIN 1988 and DIN EN 806.
  • Approved fluid is water which does not corrode the materials used, neither chemically nor mechanically, and does not contain any abrasive or long-fibre constituents.

Optimal pressure boosting. Intuitive operation.

  • Heavy-duty system featuring stainless steel high-pressure multistage centrifugal pumps from the Helix2.0 VE series with an integrated frequency converter with a large control range
  • Energy savings through IE5 EC motor technology and pressure-loss optimised overall system
  • Maximum control performance using the SCe2.0 control device with 4.3″ colour display with visualisation and plain text, simple navigation and adjustment using rotary knob
  • Demand-led pressure boosting with the additional control mode p-v and parallel synchronous speed control
  • Integrated protection functions and low-water detection (WMS)
  • Ready for integration into building automation via standard Modbus, BACnet and optional extended communication via Wilo-Gateway
  • All components that come in contact with the fluid are suitable for drinking water

Download the Wilo SiBoost2.0 Smart Helix VE Installation Manual
