Argal SATURNevo (ZGS | ZMS | ZCS)

The Argal SATURNevo series (ZGS, ZMS, ZCS) are fiberglass FRP centrifugal pumps designed for seawater and corrosive liquid applications, offering high chemical resistance, mechanical strength, and efficiency above 80%. They are available in long‑coupled (ZGS), close‑coupled (ZMS), and compact (ZCS) versions.

Category: Centrifugal pumps

Description

The Argal SATURNevo series — comprising the ZGS, ZMS, and ZCS models — is a cutting-edge line of fiberglass reinforced plastic (FRP) centrifugal pumps designed to deliver exceptional chemical resistance, mechanical strength, and efficiency in seawater and corrosive liquid applications. Built with vinyl ester resin reinforced with fiberglass and carbon fiber impellers, SATURNevo pumps achieve efficiencies above 80% while remaining lightweight and durable. Available in long‑coupled (ZGS), close‑coupled (ZMS), and compact (ZCS) configurations, the series offers versatile installation options and compliance with ANSI/ASME B73.1 standards, with optional ATEX Zone 2 certification for explosive environments.

Available in 3 versions and settable in many different configurations, the fiberglass pumps SATURNevo have superior benefits and are ideal for seawater applications and corrosive liquids and atmospheres.

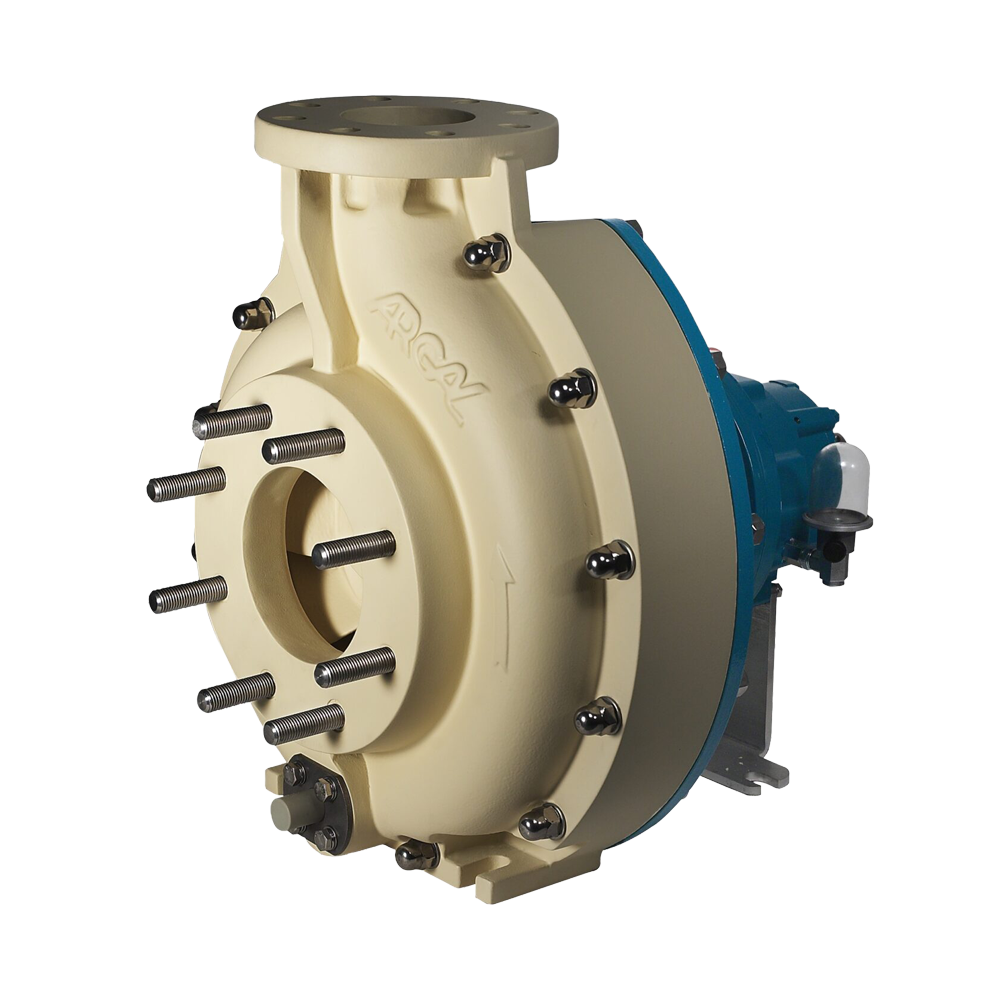

Long-coupled “ZGS” or close-coupled “ZMS”
Compact version “ZCS” for small spaces
Capacities up to 1350m3/h
Excellent mechanical strength and chemical resistance
Performance efficiency superior to 80% guaranteeing high-quality consistent over time
Vinylester resin reinforced with fiberglass is free from liquid aggression (corrosion) and therefore does not release particles or substances that can alter the liquid
Back pull-out system for long-coupled version (= easy maintenance)
ANSI/ASME B73.1 conformity
Upon request: ATEX Zone 2 (II 3G Ex h IIB T4 Gb X) with conductive liner
Lightweight thanks to the material and ARGAL technology
Impeller made of FRP reinforced with carbon fiber for more strength (cavitation issues are reduced to minimum)
Baseplate entirely made of FRP and adjustable
Feet and flanges reinforced
80% customizable with the ARGAL TAILOR-MADE Program
FRP accessories to empower or adapt the pump to any system
Upon request: possibility to choose the color of your pump

The perfect match between chemical resistance, mechanical strength, lightweight, and good quality/price ratio makes SATURNevo pumps the solution as an alternative to metallic pump for all corrosive and seawater applications:

Aquarium, zoos, and aquatic parks
Aquaculture
Desalination
Seawater processes
Chemical processes
Power plant
Oil & Gas
Pharmaceutical
Metal and mineral industry
Water and wastewater treatments

Superior chemical resistance Constructed from vinyl ester resin reinforced with fiberglass (FRP), with carbon fiber impellers, ensuring durability against seawater, acids, caustics, brine, and other corrosive liquids.
High efficiency Delivers pump efficiencies above 80%, reducing energy consumption and operating costs.
Versatile configurations Available in three versions:
- ZGS: Long‑coupled with back pull‑out system for easy maintenance.
- ZMS: Close‑coupled for compact installations.
- ZCS: Compact design for limited spaces.
Mechanical strength Reinforced feet, flanges, and FRP baseplates provide stability and resistance to mechanical stress.
Lightweight yet durable FRP construction makes the pump lighter than metal alternatives, simplifying installation without compromising strength.
Compliance & safety ANSI/ASME B73.1 compliant, with optional ATEX Zone 2 certification for explosive atmospheres.
Customization options Up to 80% customizable via Argal’s Tailor‑Made Program, including resin liners, baseplates, and even pump color.
