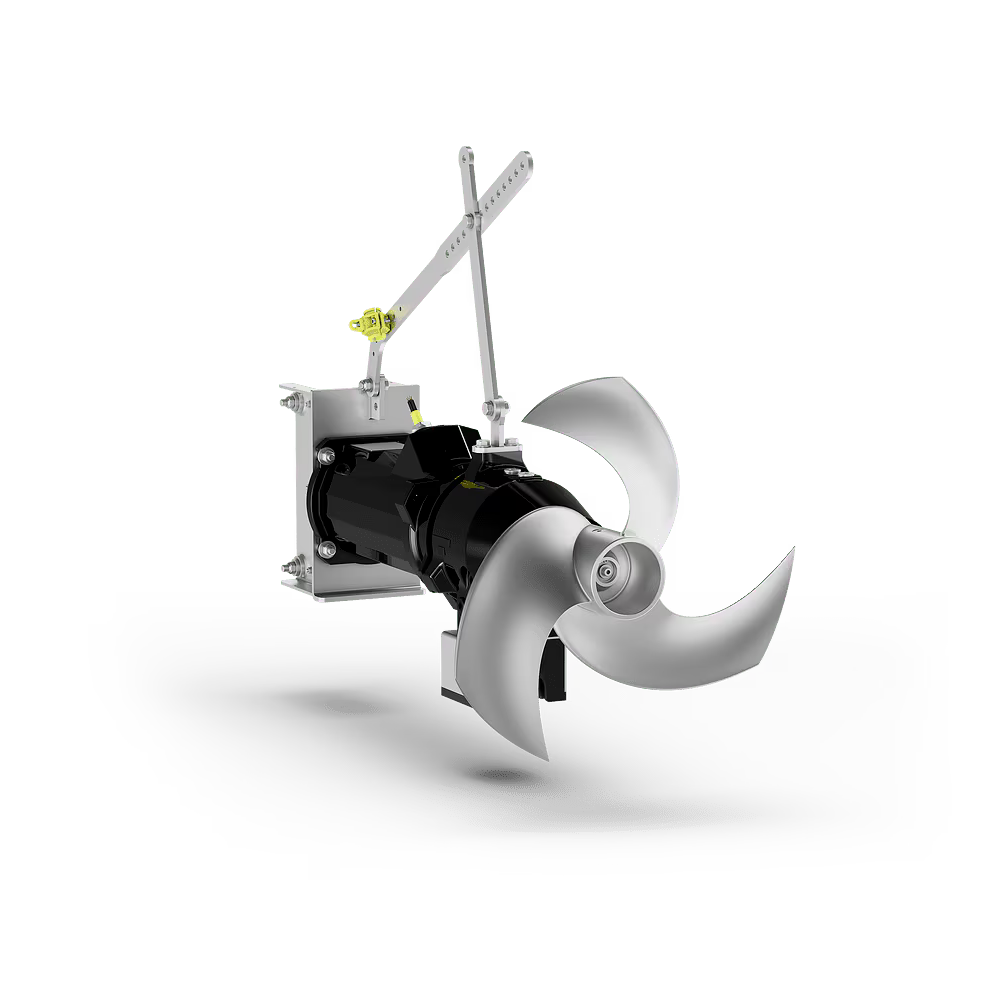

Wilo-Flumen EXCEL-TRE 50-90

The Wilo‑Flumen EXCEL‑TRE 50‑90 is a larger‑capacity recirculation pump from Wilo’s Flumen EXCEL series, designed for wastewater treatment plants handling higher flow volumes. Like the 20‑40 model, it transports sewage between nitrification and denitrification tanks, but it is optimized for bigger installations requiring robust, continuous operation.

Category: Sewage Pumps

Description

The Wilo‑Flumen EXCEL‑TRE 50‑90 is a high‑capacity recirculation pump engineered for wastewater treatment plants, delivering reliable sewage transport between nitrification and denitrification tanks. Its non‑clog propeller design and stainless steel investment‑cast construction ensure durability and long service life, even under heavy‑duty operating conditions. Equipped with an IE3 energy‑efficient motor and frequency converter compatibility, the EXCEL‑TRE 50‑90 enables speed‑controlled, load‑sensitive operation that reduces energy costs in large installations. Flexible installation options, including lowering devices and screwless coupling, simplify handling and maintenance, while its adaptability to different pipe diameters and flow rates allows seamless integration into existing systems. Built for continuous duty, the EXCEL‑TRE 50‑90 provides dependable performance for municipal and industrial wastewater applications.

Non‑clog propeller design: Flow housing reduces blockages for continuous sewage transport.
Durable stainless steel propellers: Investment‑cast for long service life and reliability.
Energy‑efficient IE3 motor: Optimized hydraulics lower operating costs.
Frequency converter compatibility: Enables speed‑controlled, load‑sensitive operation.
Flexible installation: Lowering devices and screwless coupling allow easy setup and removal, even in filled basins.
Adaptability: Configurable for different pipe diameters and flow rates.
Continuous duty design: Built for uninterrupted operation in wastewater treatment plants.

Stormwater retention tanks
Activated sludge tank
Sludge treatment
Mixing and buffer basins
Special applications

Reliable continuous operation thanks to propellers that are non-susceptible to clogging and largely dimensioned gear bearings
High operational reliability by using stainless steel investment-cast propellers
Reduction of energy costs due to best thrust to power ratio possible thanks to optimised hydraulics with minimum cavitation tendency and standard-equipped IE3 motor
Customer-specific configuration taking into account the system parameters
Simple adaptation to the load cases due to operation with a frequency converter
Simple installation and removal, even when the basins are filled, thanks to an extensive accessories portfolio
Simple replacement due to adaptation to existing installations

Download the Wilo-Flumen EXCEL-TRE 50-90 Installation Manual
