KTM Micro-Bubble Generator

Description

KTM Micro-Bubble Generator

The Nikuni KTM is a compact, high-efficiency micro-bubble generator designed to produce pressurised, air-enriched “whitewater” for dissolved air flotation (DAF) and other mixing/micro-bubble applications. By combining three functions in one machine—air induction, air-water dissolution, and pumping—the KTM simplifies DAF systems, reduces ancillary equipment, and cuts running and maintenance costs.

How it Works

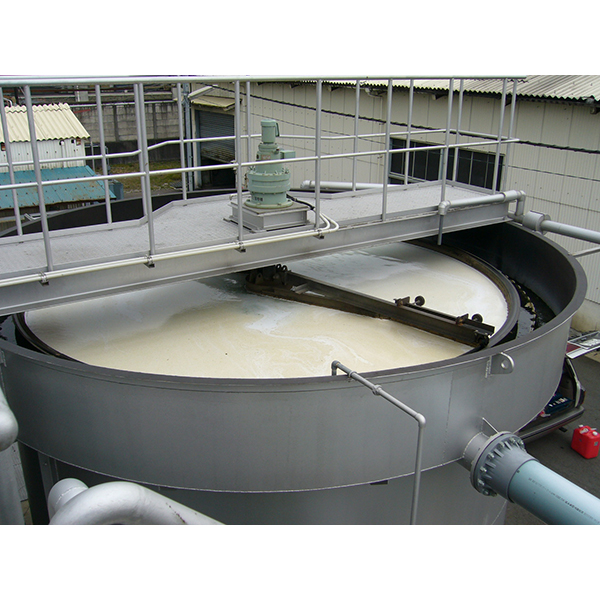

The KTM uses a regenerative turbine stage to shear and dissolve induced air into the recirculating water stream, creating a stable micro-bubble suspension (whitewater). This whitewater promotes rapid attachment to suspended solids, improving flotation and clarifying performance in DAF systems—without a separate compressor in many cases.

Model Options

  • Mounting: Base-mounted / close-coupled monoblock (varies by size)

  • Materials: Cast iron/SS (F) or all-stainless (N/S), SS316 optional

  • Electrical: 50 Hz (NZ standard); 60 Hz versions available

Dimensions & Datasheets

Detailed dimensions, curves, and wiring info available – get in touch and we’ll send the right pack for your duty and material selection.

Talk to a Specialist

We size KTM units to your solids load, recycle ratio, and plant hydraulics.

👉 Get in touch: sales@pumpandvalve.com
📞 Or call us on 0800 786 774

Nikuni by KTM Official Webpage

Three functions in one unit – induces air, dissolves it via a precision turbine impeller, and pumps whitewater to the flotation tank/process.

High dissolution efficiency – turbine technology and unique hydraulic design achieve very effective air-into-water dissolution (excellent whitewater stability).

Simplified DAF operation – often eliminates compressors and ancillary vessels, reducing footprint and complexity.

Compact, easy retrofits – small footprint; ideal for upgrading existing DAF plants.

Lower power & maintenance – efficient process, smaller motors, and a robust, simple construction.

Materials – “F” models with cast-iron wetted parts (SS impeller/shaft); “N/S” models in SS304 (SS316 optional).

  • Food, beverage & dairy wastewater (including seafood, poultry, bakeries, laundries)
  • Drinking-water treatment & desalination
  • Municipal wastewater, power stations
  • Automotive, chemical, petroleum/oil & gas
  • Paper mills & textiles

If you’re unsure, we’ll size a unit for your process.

Reference duty points below are at 0.4 MPa discharge and ~8% air injection. 60 Hz models available on request.

ModelWater Flow (L/min)Water Flow (m³/h)Air Flow (nL/min)*Motor Power
KTM20F/N171.01.3 (0–5)0.75 kW / 2-pole
KTM25F/N251.52.0 (0–5)1.5 kW / 2-pole
KTM32F/N503.04.0 (0–10)2.2 kW / 2-pole
KTM40F/N804.86.4 (0–20)3.7 kW / 2-pole
KTM50F1(D)/S1(D)1338.011.0 (0–20)5.5 kW / 4-pole
KTM50F2(D)/S2(D)20012.016.0 (0–20)7.5 kW / 4-pole
KTM50F3(D)/S3(D)25015.020.0 (0–30)11 kW / 4-pole
KTM65SF2(D)/S2(D)33320.027.0 (0–40)15 kW / 4-pole
KTM80SF(D)/S(D)70042.056.0 (0–80)22 kW / 4-pole

* Air-flow bracket indicates recommended flow-meter range. Materials key: F = cast-iron wetted parts with SS impeller/shaft; N/S = SS304 (SS316 optional).
